Bending Machine- Hand Brake/ Metal Brake/

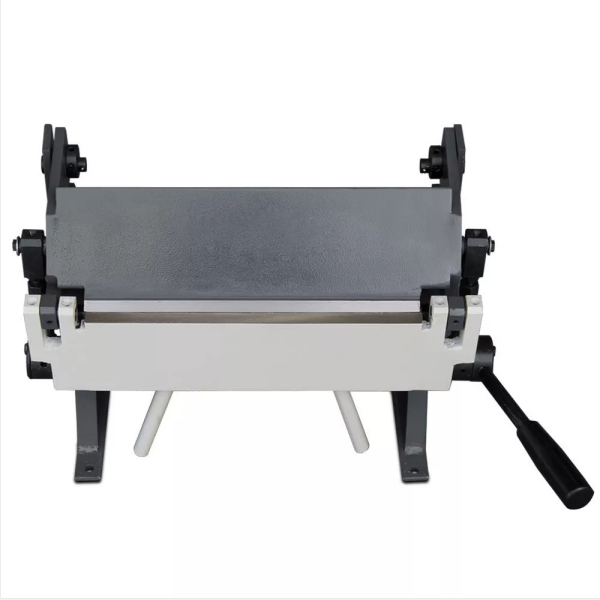

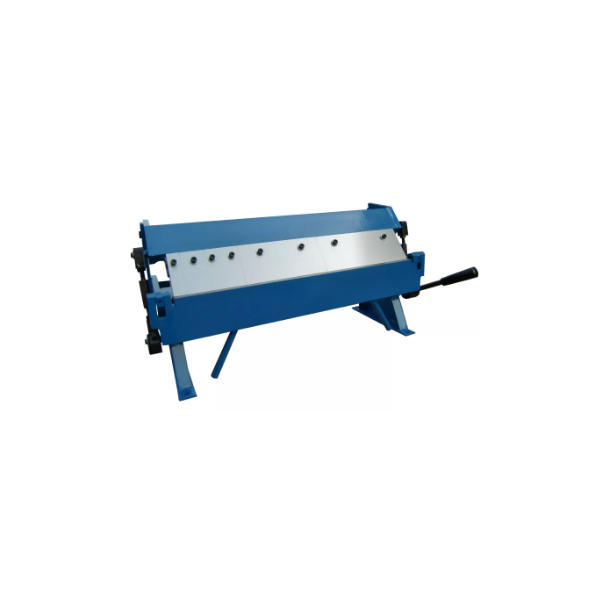

W1.0X305 Hand Brake
Feature
* Bed and apron bored in line for high accuracy
* Heavy truss rods and braces
* Handy version for modelers, exhibition constructors, for use on the building site, limited spaces and for filigree working
* Sharp edges for precise results, angles up to 135°possible
* Optimum Excentre-folder construction with upper beam stroke via the side handle
* Upper beam adjustable to a different material thickness using special Excentre screws
* Inexpensive and perfect for professional and semi-professionals
| Item No. | 223010 | 223012 | 223014 | 223022 | |

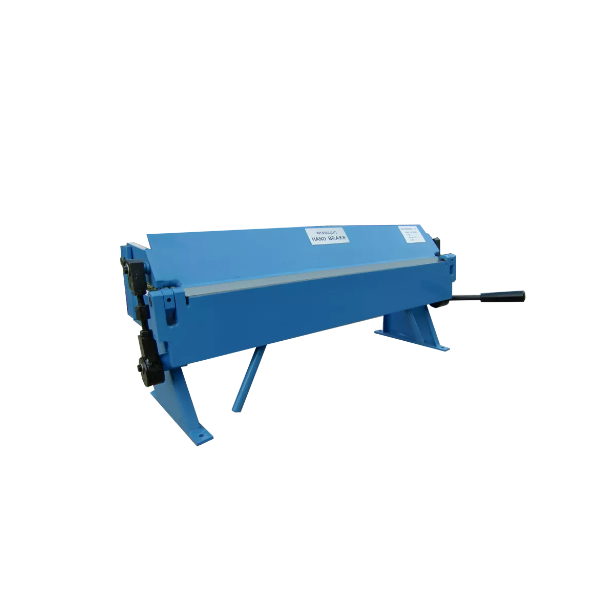

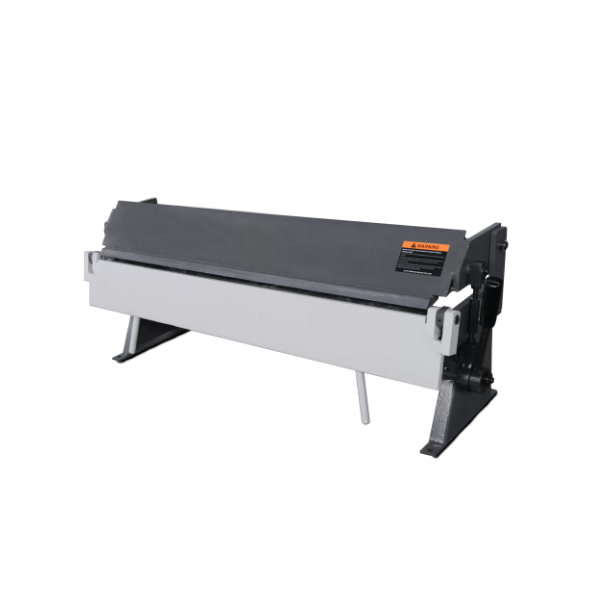

| Model | W1.0x305 | W1.0x610 | W1.0x915 | W1.2x1220 | |
| Capacity | Width | 305 mm | 610 mm | 915 mm | 1220 mm |
| Thickness | 1.0 mm | 1.0 mm | 1.0 mm | 1.2 mm | |
| Angle | 0-135° | 0-135° | 0-135° | 0-135° | |
| Packing size | 51x30x35 cm | 82x30x37 cm | 116x41x59 cm | 158x39x58 cm | |
| N.W. / G.W. | 19/20 kg | 29/30 kg | 65/78 kg | 90/104 kg | |

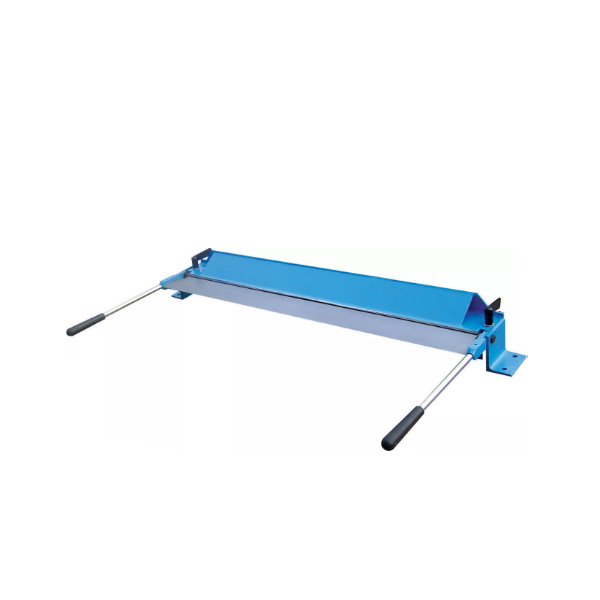

W1.0X305 Hand Brake
Feature
* With one whole blade
* Bending angle up to 140°
Standard accessories:
Bending blade
| Item No. | 223010 | 223012 | 223014 | 223022 | |
| Model | W1.0x305 | W1.0x610 | W1.0x915 | W1.2x1220 | |
| Capacity | Width | 305 mm | 610 mm | 915 mm | 1220 mm |
| Thickness | 1.0 mm | 1.0 mm | 1.0 mm | 1.2 mm | |
| Angle | 0-135° | 0-135° | 0-135° | 0-135° | |
| Packing size | 51x30x35 cm | 82x30x37 cm | 116x41x59 cm | 158x39x58 cm | |
| N.W. / G.W. | 19/20 kg | 29/30 kg | 65/78 kg | 90/104 kg | |

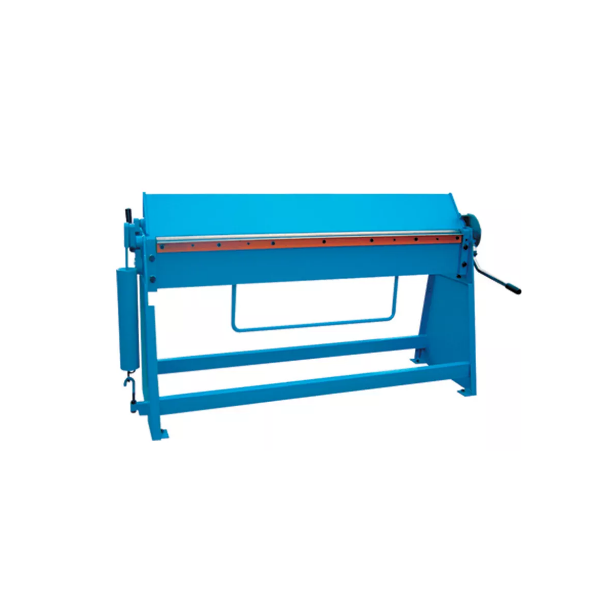

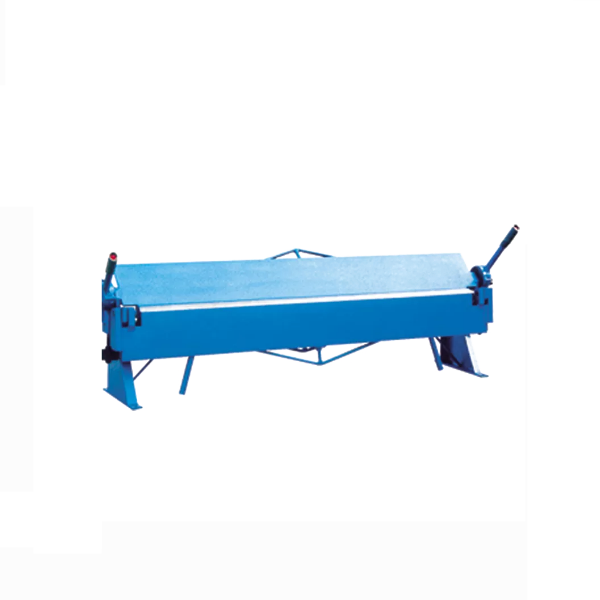

W1.2X1000 Hand Brake
Feature:
* Simple construction, and easy for moving and working
* Thickness capacity is up to 1.2mm
Optional accessories:
C clamp
| Item No. | 223026 | 223030 | |
| Model | W1.2x1500 | W1.0x2000 | |
| Capacity | Width | 1500 mm | 1500 mm |
| Thickness | 1.2 mm | 1.0 mm | |
| Angle | 0-140° | 0-140° | |
| Packing size | 200x76x125 cm | 250x76x125 cm | |
| N.W. / G.W. | 285/355 kg | 410/500 kg | |
W1.0X305A Pan & Box Brake
Feature:
* Solid welded frame
* Removable segmented fingers
* Hardness steel dies can be repositioned for different size jobs
* Removable gauge capacities are applicable when using mild steel
* Using galvanized steel lowers the maximum gauge capacity
Standard accessories: Handle
Optional accessories: Stand
| Item No. | 223110 | 223112 | 223114 | |
| Model | W1.0x305A | W1.0x610A | W1.0x915A | |
| Capacity | Width | 305 mm | 610 mm | 915 mm |
| Thickness | 1.0 mm | 1.0 mm | 1.0 mm | |
| Angle | 0-135° | 0-135° | 0-135° | |
| Packing size | 50x35x41 cm | 82x35x44 cm | 113x35x55 cm | |
| N.W. / G.W. | 28/30 kg | 43/46 kg | 80/90 kg | |

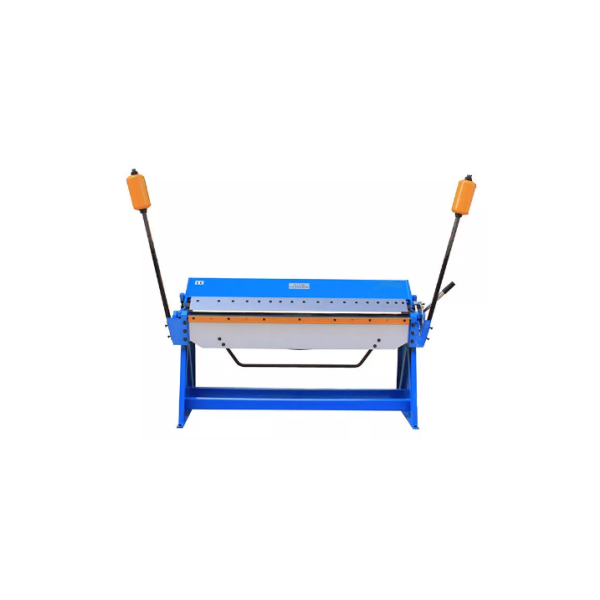

W1.5X1500 Pan & Box Brake
Feature:
* With one whole blade
* Bending angle up to 140°
Standard accessories:
Bending segment
Optional accessories:
| Item No. | 223128 | 223132 | |
| Model | W1.5x1500 | W1.2x2000 | |
| Capacity | Width | 1500 mm | 2000 mm |
| Thickness | 1.5 mm | 1.2 mm | |
| Angle | 0-140° | 0-140° | |
| Packing size | 200x75x123 cm | 250x75x123 cm | |
| N.W. / G.W. | 445/550kg | 581/713 kg | |
W1.5X1220 Pan & Box Brake
Feature:
* European-Standard Quality Ensure
* Adjustable according to different requirement
* The bending blade is a kind of folded box, featuring simple structure and easy operation.
Standard accessories:
Handle
Optional accessories:
Stand
| Item No. | 223120 | |
| Model | W1.5x1220 | |
| Capacity | Width | 1220 mm |
| Thickness | 1.5 mm | |
| Angle | 0-135° | |
| Packing size | 158x45x66 cm | |
| N.W. / G.W. | 142/160 kg | |

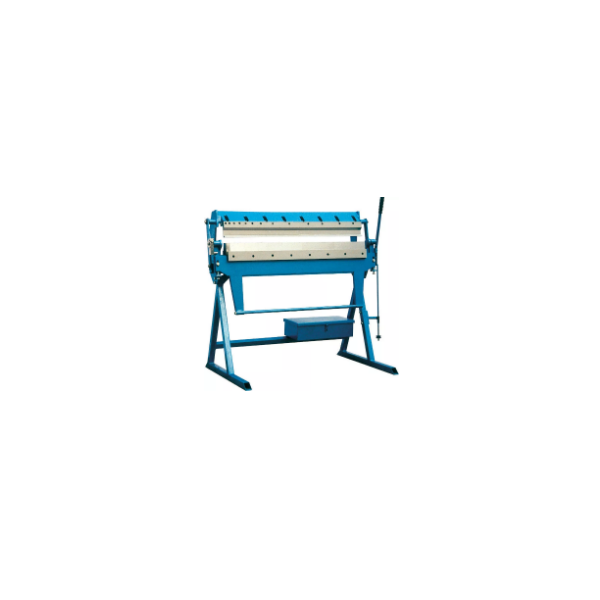

W1.5X1050 Pan & Box Brake
Feature
* Segment bending bar for the bending of box
* Section with various widths, glide position
Standard accessories:
Stand
Optional accessories:
No.
| Item No. | 223118 | |
| Model | W1.5X1050 | |
| Capacity | Width | 1050 mm |
| Thickness | 1.5 mm | |
| Angle | 0-135° | |
| Packing size | 144x77x110 cm | |
| N.W. / G.W. | 185/230 kg | |

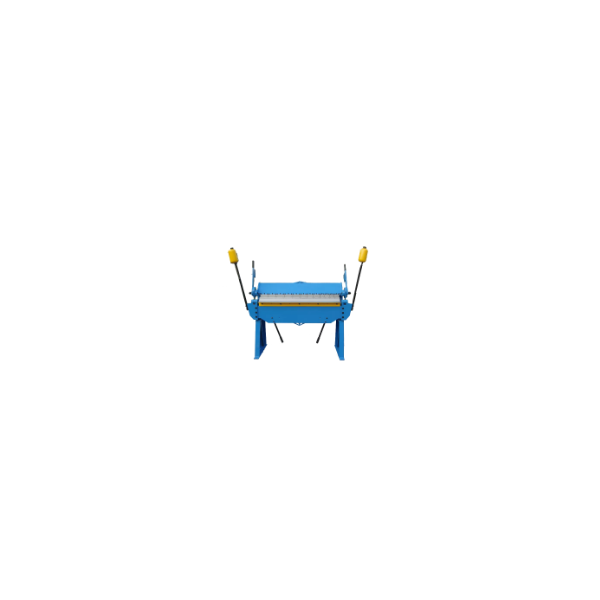

W2.5X1220 Pan & Box Brake
* Width segment bending blade for the bending of box section
* Various widths segment shift able setup
* With balanced hammer, it can easy to operate and easy for folding
Standard accessories:
Bending segments
Balance weight hammer
Optional accessories:
No.
| Item No. | 223122 | |
| Model | W2.5X1220 | |
| Capacity | Width | 1220 mm / 48” |
| Thickness | 2.5 mm / 12Ga | |
| Angle | 0-135° | |
| Packing size | 170x75x96 cm | |
| N.W. / G.W. | 495/575 kg | |
