Cutting Tools Carbide Tipped Tool Bits

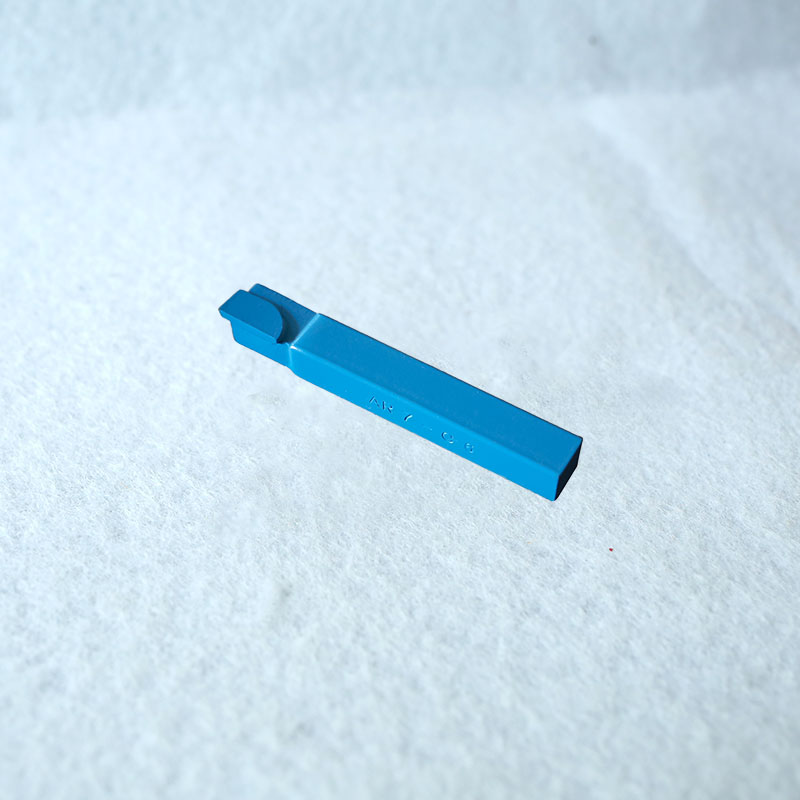

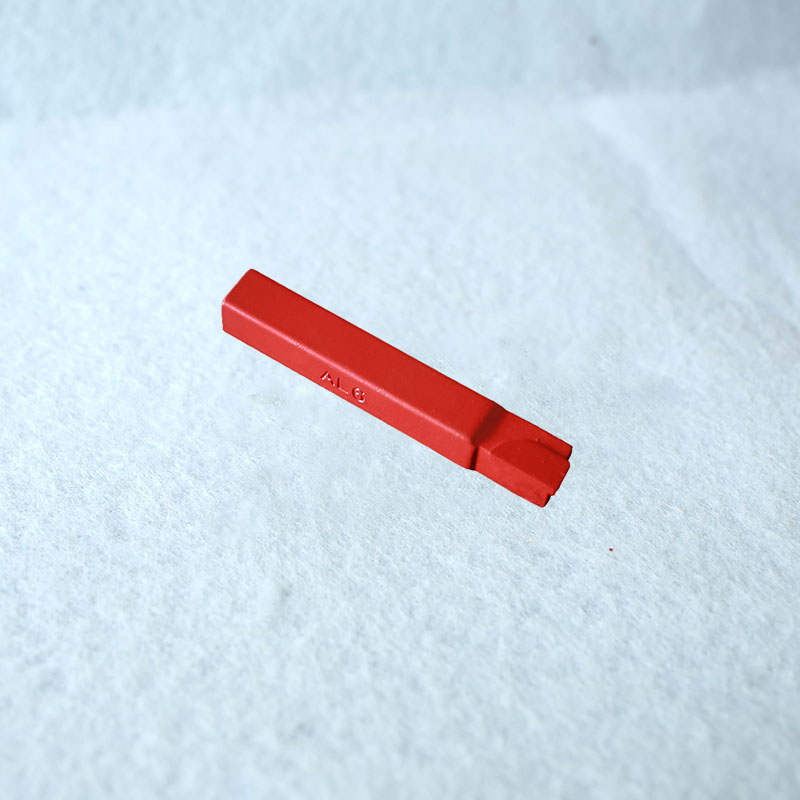

Style AR & AL
Straight Turning-for general machining applications such as turning, boring,facing and chamfering. suitable for machining to a 90° shoulder.
| Square | Length | Industry Number | Right Hand C-2 Model No. | Right Hand C-6 Model No. | Industry Number | Left Hand C-2 Model No. | Left Hand C-6 Model No. |
| 1/4" | 2" | AR-4 | 1383-0012 | 1383-0016 | AL-4 | 1383-0112 | 1383-0116 |
| 5/16" | 2-1/4" | AR-5 | 1383-0022 | 1383-0026 | AL-5 | 1383-0122 | 1383-0126 |
| 3/8" | 2-1/2" | AR-6 | 1383-0032 | 1383-0036 | AL-6 | 1383-0132 | 1383-0136 |
| 7/16" | 3" | AR-7 | 1383-0042 | 1383-0046 | AL-7 | 1383-0142 | 1383-0146 |
| 1/2" | 3-1/2" | AR-8 | 1383-0052 | 1383-0056 | AL-8 | 1383-0152 | 1383-0156 |
| 5/8" | 4" | AR-10 | 1383-0062 | 1383-0066 | AL-10 | 1383-0162 | 1383-0166 |
| 3/4" | 4-1/2" | AR-12 | 1383-0072 | 1383-0076 | AL-12 | 1383-0172 | 1383-0176 |
| 1" | 6" | AR-16 | 1383-0082 | 1383-0086 | AL-16 | 1383-0182 | 1383-0186 |

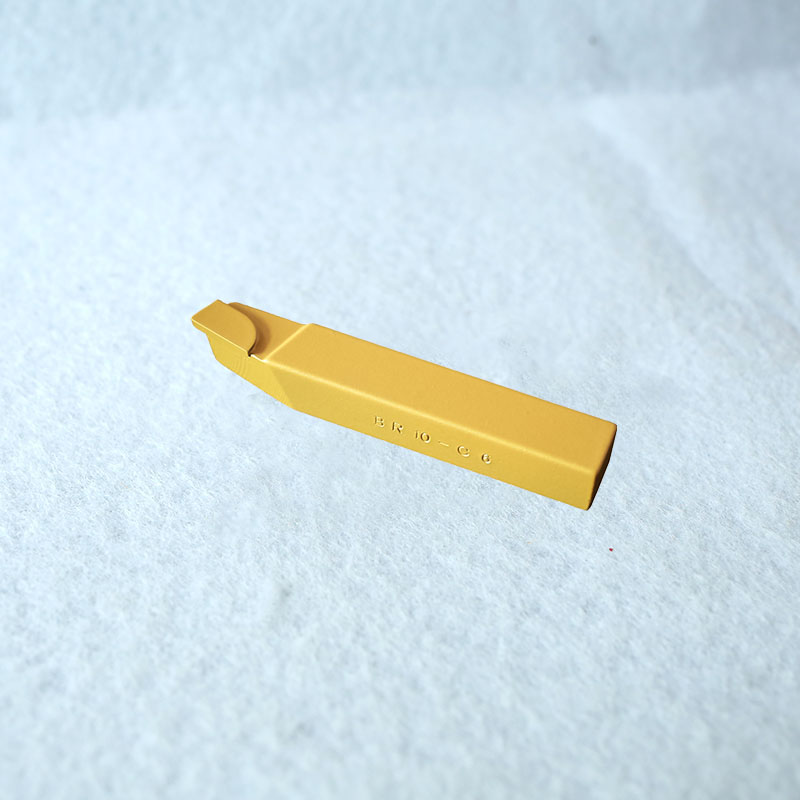

Style BR & BL
Leading Angle turning-for general applications on turning, boring, and facing where a lead angle is either required or acceptable.
| Square | Length | Industry Number | Right Hand C-2 Model No. | Right Hand C-6 Model No. | Industry Number | Left Hand C-2 Model No. | Left Hand C-6 Model No. |
| 1/4" | 2" | BR-4 | 1383-1012 | 1383-1016 | BL-4 | 1383-1112 | 1383-1116 |
| 5/16" | 2-1/4" | BR-5 | 1383-1022 | 1383-1026 | BL-5 | 1383-1122 | 1383-1126 |
| 3/8" | 2-1/2" | BR-6 | 1383-1032 | 1383-1036 | BL-6 | 1383-1132 | 1383-1136 |
| 7/16" | 3" | BR-7 | 1383-1042 | 1383-1046 | BL-7 | 1383-1142 | 1383-1146 |
| 1/2" | 3-1/2" | BR-8 | 1383-1052 | 1383-1056 | BL-8 | 1383-1152 | 1383-1156 |
| 5/8" | 4" | BR-10 | 1383-1062 | 1383-1066 | BL-10 | 1383-1162 | 1383-1166 |
| 3/4" | 4-1/2" | BR-12 | 1383-1072 | 1383-1076 | BL-12 | 1383-1172 | 1383-1176 |
| 1" | 6" | BR-16 | 1383-1082 | 1383-1086 | BL-16 | 1383-1182 | 1383-1186 |

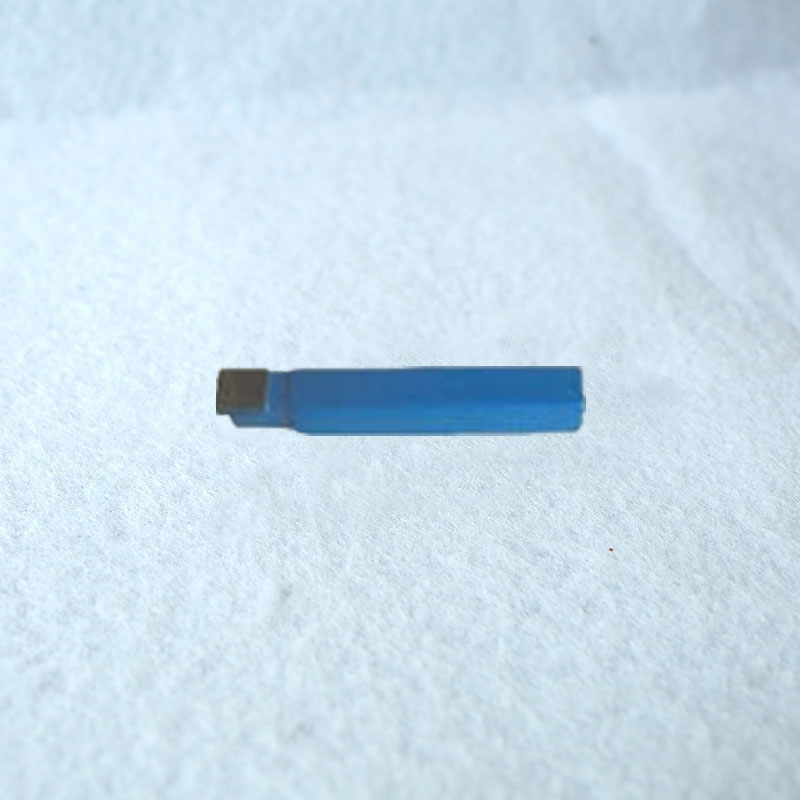

Style C
Broad nose-a general purpose tool of great utility for facing, chamfering, and turning. This tool is generally used for making special form tools.
| Square | Length | Industry Number | C-2 Model No. | C-6 Model No. |
| 1/4" | 2" | C-4 | 1383-2002 | 1383-2006 |
| 5/16" | 2-1/4" | C-5 | 1383-2012 | 1383-2016 |
| 3/8" | 2-1/2" | C-6 | 1383-2022 | 1383-2026 |
| 7/16" | 3" | C-7 | 1383-2032 | 1383-2036 |
| 1/2" | 3-1/2" | C-8 | 1383-2042 | 1383-2046 |
| 5/8" | 4" | C-10 | 1383-2052 | 1383-2056 |
| 3/4" | 4-1/2" | C-12 | 1383-2062 | 1383-2066 |
| 1" | 6" | C-16 | 1383-2072 | 1383-2076 |
Style D
80° Round nose-an 80° included angle round nose tool for turning, boring, facing, chamfering and other miscellaneous machining operations.
| Square | Length | Industry Number | C-2 Model No. | C-6 Model No. |
| 1/4" | 2" | D-4 | 1383-3012 | 1383-3016 |
| 5/16" | 2-1/4" | D-5 | 1383-3022 | 1383-3026 |
| 3/8" | 2-1/2" | D-6 | 1383-3032 | 1383-3036 |
| 7/16" | 3" | D-7 | 1383-3042 | 1383-3046 |
| 1/2" | 3-1/2" | D-8 | 1383-3052 | 1383-3056 |
| 5/8" | 4" | D-10 | 1383-3062 | 1383-3066 |
| 3/4" | 4-1/2" | D-12 | 1383-3072 | 1383-3076 |
| 1" | 6" | D-16 | 1383-3082 | 1383-3086 |

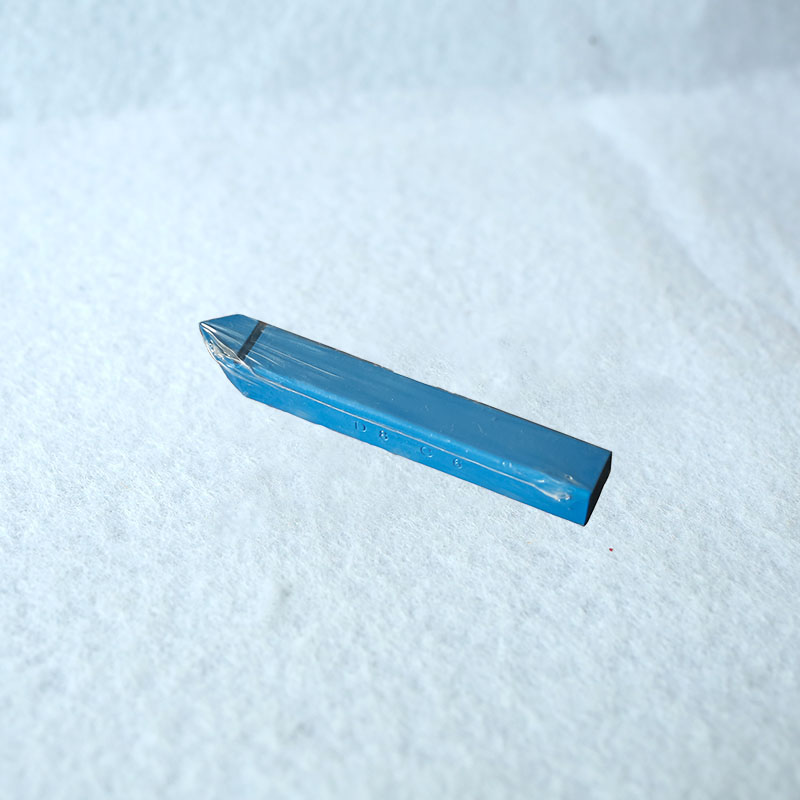

Style E
Threading-conforms with the U.S. Standard 60° included angle thread, also used for V-grooving chamfering, turning, boring and facing.
| Square | Length | Industry Number | C-2 Model No. | C-6 Model No. |
| 1/4" | 2" | E-4 | 1383-4002 | 1383-4006 |
| 5/16" | 2-1/4" | E-5 | 1383-4012 | 1383-4016 |
| 3/8" | 2-1/2" | E-6 | 1383-4022 | 1383-4026 |
| 7/16" | 3" | E-7 | 1383-4032 | 1383-4036 |
| 1/2" | 3-1/2" | E-8 | 1383-4042 | 1383-4046 |
| 5/8" | 4" | E-10 | 1383-4052 | 1383-4056 |
| 3/4" | 4-1/2" | E-12 | 1383-4062 | 1383-4066 |
| 1" | 6" | E-16 | 1383-4072 | 1383-4076 |
STYLES ER-Right And EL-Left
60° Offset Tool, Right Hand for facing to square shoulder. Used mainly for turret lathe operations.Right and left hand tools are used together for straddle facing. Left hand for turning.
| E | D | H | L | Industry No. | C-2 Model No. | C-6 Model No. | Industry No. | C-2 Model No. | C-6 Model No. |
| 1/16" | 1/4" | 1/4" | 2" | ER-4 | 1383-6202 | 1383-6206 | EL-4 | 1383-6302 | 1383-6306 |
| 1/16" | 5/16" | 5/16" | 2-1/4" | ER-5 | 1383-6232 | 1383-6236 | EL-5 | 1383-6332 | 1383-6336 |
| 1/16" | 3/8" | 3/8" | 2-1/2" | ER-6 | 1383-6212 | 1383-6216 | EL-6 | 1383-6312 | 1383-6316 |
| 3/32" | 1/2" | 1/2" | 3-1/2" | ER-8 | 1383-6222 | 1383-6226 | EL-8 | 1383-6322 | 1383-6326 |
| 3/32" | 5/8" | 5/8" | 4" | ER-10 | 1383-6242 | 1383-6246 | EL-10 | 1383-6342 | 1383-6346 |
STYLES FR-RIGHT AND FL-LEFT
End Cutting Offset Tool, right hand for facing to square shoulder. Used mainly for turret lathe operations.
Right and left hand tools are used together for straddle facing. Left hand for turning.
| E | D | H | L | Industry No. | C-2 Model No. | C-6 Model No. | Industry No. | C-2 Model No. | C-6 Model No. |
| 1/32" | 1/2" | 1/2" | 3-1/2" | FR-8 | 1383-8002 | 1383-8006 | FL-8 | 1383-8102 | 1383-8106 |
| 1/32" | 5/8" | 5/8" | 4" | FR-10 | 1383-8012 | 1383-8016 | FL-10 | 1383-8112 | 1383-8116 |
| 1/32" | 3/4" | 3/4" | 4-1/2" | FR-12 | 1383-8022 | 1383-8026 | FL-12 | 1383-8122 | 1383-8126 |
| 1/32" | 1" | 1" | 7" | FR-16 | 1383-8032 | 1383-8036 | FL-16 | 1383-8132 | 1383-8136 |
STYLE GR-Right AND GL-Left
Right, left hand for facing to square shoulder.
Side cutting offset tools. Ideal for facing work close to chuck jaws on engine lathes, turret lathes, boring mills and vertical turret lathes.
| E | D | H | L | Industry No. | C-2 Model No. | C-6 Model No. | Industry No. | C-2 Model No. | C-6 Model No. |
| 1/32" | 1/2" | 1/2" | 3-1/2" | GR-8 | 1383-8202 | 1383-8206 | GL-8 | 1383-8302 | 1383-8306 |
| 1/32" | 5/8" | 5/8" | 4" | GR-10 | 1383-8212 | 1383-8216 | GL-10 | 1383-8312 | 1383-8316 |
| 1/32" | 3/4" | 3/4" | 4-1/2" | GR-12 | 1383-8222 | 1383-8226 | GL-12 | 1383-8322 | 1383-8326 |
| 1/32" | 1" | 1" | 7" | GR-16 | 1383-8232 | 1383-8236 | GL-16 | 1383-8332 | 1383-8336 |
Style TSA
Square Shank Boring Tools for boring to a square shoulder in 90° boring bars.
| Size | Radius | Industry No. | C-2 Model No. | C-6 Model No. |
| 5/16" | 1/64" | TSA5 | 1383-8402 | 1383-8406 |
| 3/8" | 1/64" | TSA6 | 1383-8412 | 1383-8416 |
| 1/2" | 1/32" | TSA8 | 1383-8422 | 1383-8426 |
| 5/8" | 1/32" | TSA10 | 1383-8432 | 1383-8436 |
| 3/4" | 1/32" | TSA12 | 1383-8442 | 1383-8446 |
Styles CTR & CTL
Cut-off-designed for cut-off or grooving solid bars and tube parting.
| Shank Size | Tip Dia | Overall Length | Industry No. | C-2 Model No. | C-6 Model No. | Industry No. | C-2 Model No. | C-6 Model No. |
| 1/2*1 | 1/8" | 5 | CTR-111 | 1383-4602 | 1383-4606 | CTL-111 | 1383-4702 | 1383-4706 |
| 1/2*1 | 3/16" | 5 | CTR-122 | 1383-4612 | 1383-4616 | CTL-122 | 1383-4712 | 1383-4716 |
| 1/2*1 | 5/16" | 5 | CTR-120 | 1383-4622 | 1383-4626 | CTL-120 | 1383-4722 | 1383-4726 |
| 1/2*1 | 1/4" | 5 | CTR-121 | 1383-4632 | 1383-4636 | CTL-121 | 1383-4732 | 1383-4736 |
| 5/8*1-1/4 | 3/8" | 5 | CTR-130 | 1383-4642 | 1383-4646 | CTL-130 | 1383-4742 | 1383-4746 |
| 3/4*1-1/2 | 3/8" | 6 | CTR-140 | 1383-4652 | 1383-4656 | CTL-140 | 1383-4752 | 1383-4756 |
Style TRC & TRE
Round Boring Tools. For boring to a square shoulder in 45° boring bars or with 15° lead angle in 30° boring bars. For recessing and internal charmfering in 90° boring bar.
| Type | Description |
| TRC | For Boring to Square Shoulder in 30° Bars |
| TRE | For Boring to a Square Shoulder in 45° Bars or with 15° Lead in 30° Bars. |
| Size | Radius | Dia. | Length | Industry No. | C-2 Model No. | C-6 Model No. | Industry No. | C-2 Model No. | C-6 Model No. |
| 5/16" | 1/64" | 5/16" | 1-1/2" | TRC5 | 1383-8702 | 1383-8706 | TRE5 | 1383-8802 | 1383-8806 |
| 3/8" | 1/64" | 3/8" | 1-3/4" | TRC6 | 1383-8712 | 1383-8716 | TRE6 | 1383-8812 | 1383-8816 |
| 1/2" | 1/64" | 1/2" | 2-1/2" | TRC8 | 1383-8722 | 1383-8726 | TRE8 | 1383-8822 | 1383-8826 |
Style TSC
For boring to a square shoulder in a 30° boring bar or internal Chamfering(30°) in a 0°.
| Size | Radius | Industry No. | C-2 Model No. | C-6 Model No. |
| 1/5" | 1/64" | TSC5 | 1383-8502 | 1383-8506 |
| 3/8" | 1/64" | TSC6 | 1383-8512 | 1383-8516 |
| 1/2" | 1/32" | TSC8 | 1383-8522 | 1383-8526 |
| 5/8" | 1/32" | TSC10 | 1383-8532 | 1383-8536 |
| 3/4" | 1/32" | TSC12 | 1383-8542 | 1383-8546 |
Style TSE
For boring to a square shoulder in a 45° boring bar or boring with a 15° lead angle in a 30° boring bar.
| Size | Radius | Industry No. | C-2 Model No. | C-6 Model No. |
| 5/16" | 1/64" | TSE5 | 1383-8602 | 1383-8606 |
| 3/8" | 1/64" | TSE6 | 1383-8612 | 1383-8616 |
| 1/2" | 1/32" | TSE8 | 1383-8622 | 1383-8626 |
| 5/8" | 1/32" | TSE10 | 1383-8632 | 1383-8636 |
| 3/4" | 1/32" | TSE12 | 1383-8642 | 1383-8646 |
