GRINDING WHELL DRESSER
This dresser features high manufacturing precision, easy regulation and perfect operation. It is most suitable for use in toolmaking or mouldmaking factories and other kinds of machinery plants as an ideal and indispenable machine tool for grinding circular or angular surfaces on grinding wheels. Its trimming process can finish different precision working surfaces on grinding. Wheel as known in the following illustrations.
|
Height of center |
165mm |
|
Measuring quasi-pin dia |
10mm |
|
Max swing distance cutter |
±20mm |
|
Max wheel diameter |
200mm |
|
Max size of arc may be dressed |
±40mm |
|
Reading accuracy of swivel slide |
5′ |
|
Max translation of feed |
20mm |
|
Feed per division of handle scale |
0.02mm |
|

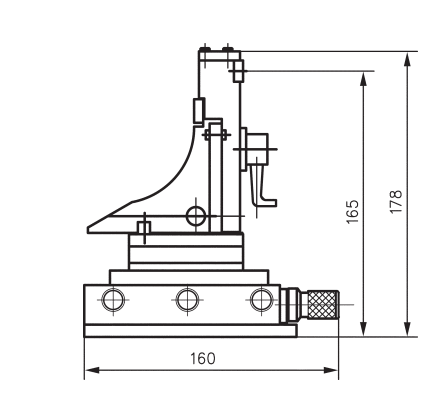

Over all dimensions(L×W×H) |
160×106×180mm |
|
Wt |
5kg |
|
Item No. |
575030 |
