GTC Series Column Moving Surface Grinder

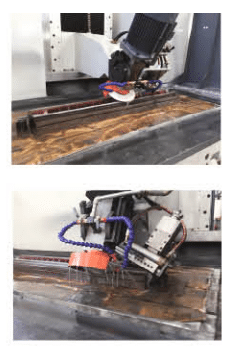

Description
| Description | Unit |
Specification |
|||||
| Item NO. |
121501 |
121511 |
121521 |
121531 |
121541 |
||
| Model |
GTC6016 |
GTC6022 |
GTC8016 |
GTC8022 |
GTC8030 |
||
| Table size (W*L) | mm |
610×1600 |
610×2200 |
810×1600 |
810×2200 |
810×3000 |
|
| Max.Grinding size(transverse*longitudinal) | mm |
610×1600 |
610×2200 |
810×1600 |
810×2200 |
810×3000 |
|
| Max.Grinding Height | mm |
600 |
|||||
|
Speed of table longitudinal movement |
Speed | m/min |
5~25 |
||||
| Rapid speed | m/min |
0.05~2 |
|||||
| Electronic handwheel feed | mm/gra |
0.005 |
|||||
|
Wheelhead vertical movement |
Rapid speed | m/min |
0.05~2 |
||||
| Electronic handwheel feed | mm/gra |
0.005 |
|||||
| Vertical wheel head rotation | ° |
±30° ±5° |
|||||
| Gringding wheel | speed | rpm |
1450 |
||||
| size (OD×W×ID) | mm |
According to the technique request |
|||||
| Spindle Motor | kw |
5.5 |
|||||
| Max.loading capacity of worktable(with magnetic chuck) | kg |
1230 |
1690 |
1630 |
2240 |
3060 |
|
| Total rated power | kw |
17 |
19 |
||||
| Height of machine | mm |
2720 |
|||||
| Floor space (L×W) | mm |
4700×3000 |
6000×3000 |
4700×3500 |
6000×3500 |
8200×3600 |
|
| Weight | kg |
8500 |
9500 |
10000 |
11500 |
14000 |
|
Explain
NC servo on transverse,NC servo on vertical, hydraulic transmission on longitudinal.
Standard Accessories
Magnetic chuck
Grinding wheel chuck
Wheel balance stand
Optional Accessories
Magnetic separator
Sine Vice
Dust Collecting system
Magnetic separator and pape filter
2 axis DRO
Diamond pen
