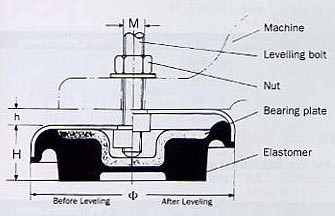

MACHINE MOUNTS
Mounts Dimensions & Values List
|
Model |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|
Diameter (mm) |
40 |
80 |
120 |
160 |
185 |
229 |
317 |
|
Height (mm) |
15 |
25 |
32/37 |
35/41 |
39/45 |
54/60 |
70/100 |
|
Thread |
M5 |
M |
M12 |
M16 |
M20 |
M24 |
M30 |
|
Height-adjust (mm) |
5 |
8 |
12 |
12 |
12 |
12 |
12 |
|
Per Mount |
800 |
4000 |
12000 |
30000 |
50000 |
70000 |
100000 |
|
Item No |
574010 |
574015 |
574020 |
574025 |
574030 |
574035 |
574040 |
|
Application |
Metalcutting machines, metalforming machinex, rubber and plastic machines, textile machines, |
||||||
|
foodprocess machines, generator, pump and heavy-duty machines. |
|||||||
