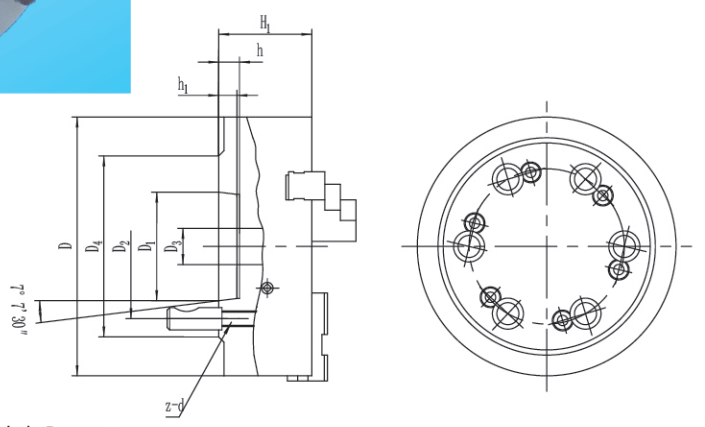

3-JAW DIRECT MOUNT D1 CAMLOCK CHUCKS
|
Item No. |
Model |
D |
D1 |
D2 |
D3 |
D4 |
H1 |
h |
h1 |
z-d |
|
571241 |
K11160/D3 |
160 |
53.975 |
70.6 |
40 |
92 |
76 |
13 |
10 |
3-M10x1 |
|
571243 |
K11160/D4 |
160 |
63.513 |
82.6 |
40 |
117 |
70 |
13 |
10 |
3-M10x1 |
|
571245 |
K11160/D5 |
160 |
82.563 |
104.8 |
40 |
146 |
73 |
15 |
12 |
6-M12x1 |
|
571247 |
K11200/D4 |
200 |
63.513 |
82.6 |
50 |
117 |
86 |
13 |
10 |
3-M10x1 |
|
571249 |
K11200/D5 |
200 |
82.563 |
104.8 |
50 |
146 |
86 |
15 |
12 |
6-M12x1 |
|
571251 |
K11200/D6 |
200 |
106.375 |
133.4 |
50 |
117 |
86 |
16 |
13 |
6-M16x1.5 |
|
571253 |
K11250/D5 |
250 |
82.563 |
104.8 |
70 |
146 |
95 |
15 |
12 |
6-M12x1 |
|
571255 |
K11250/D6 |
250 |
106.375 |
133.4 |
70 |
181 |
98 |
16 |
13 |
6-M16x1.5 |
|
571257 |
K11250/D8 |
250 |
139.719 |
171.4 |
80 |
225 |
98 |
18 |
14 |
6-M20x1.5 |
|
571259 |
K11325/D6 |
325 |
106.375 |
133.4 |
100 |
181 |
103.5 |
16 |
13 |
6-M16x1.5 |
|
571261 |
K11325/D8 |
325 |
139.719 |
171.4 |
105 |
225 |
103.5 |
18 |
14 |
6-M20x1.5 |
|
571263 |
K11325/D11 |
325 |
196.869 |
235 |
105 |
290 |
106 |
20 |
16 |
6-M22x1.5 |
|
571265 |
K11380/D8 |
380 |
139.719 |
171.4 |
130 |
225 |
118 |
18 |
14 |
6-M20x1.5 |
|
571267 |
K11380/D11 |
380 |
196.869 |
235 |
135 |
290 |
118 |
20 |
16 |
6-M22x1.5 |
|
571269 |
K11400C/D11 |
400 |
196.869 |
235 |
138 |
290 |
139 |
20 |
16 |
6-M22x1.5 |
