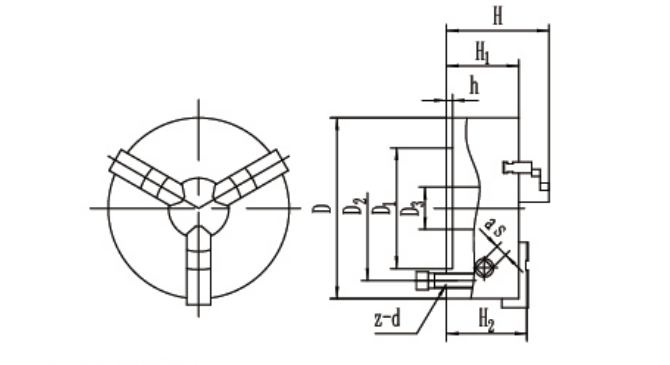

3-JAW PLAIN BACK SELF-CENTERING CHUCK
|
Item NO. |
Model |
D1 |
D2 |
D3 |
H |
H1 |
H2 |
h |
s |
z-d |
|
571191 |
80 |
55 |
66 |
16 |
6 |
50 |
- |
3.5 |
8 |
3-M6 |
|
571193 |
100 |
72 |
84 |
22 |
74.5 |
55 |
- |
3.5 |
8 |
3-M6 |
|
571195 |
125 |
95 |
108 |
30 |
84 |
58 |
- |
4 |
10 |
3-M8 |
|
571197 |
160 |
130 |
142 |
40 |
96.5 |
66.5 |
71 |
4.5 |
12 |
3-M8 |
|
571199 |
200 |
165 |
180 |
65 |
109 |
75 |
- |
5 |
12 |
3-M10 |
|
571201 |
250 |
206 |
226 |
80 |
120 |
80 |
- |
5 |
12 |
3-M12 |
|
571203 |
315C |
260 |
285 |
100 |
153 |
90 |
96 |
11 |
13 |
3-M16 |
|
571207 |
400C |
340 |
368 |
138 |
158 |
100 |
- |
6 |
17 |
3-M16 |
