Precision Metal Turning CNC Lathe Machine Horizontal CNC Lathe CNC6130D Series

Short Description:

•The bedway、slideway and guideways are hardened and precision ground •Infinitely variable speed for the spindle obtained through inverter motor • Axis X with large stroke• wide bedways • high rigidity and accuracy, run smoothly with low noise • Design of electromechanical integration, easy operation and maintenance• Clamping methods of manual chuck, power chuck and spring collect are interchangeable.


Product Detail

Product Tags

Main Feature And Function

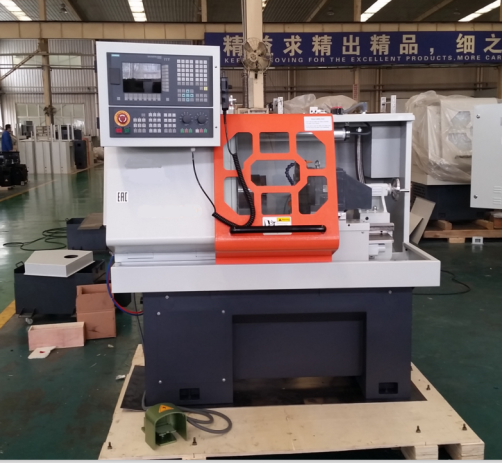

CNC6130D CNC LATHE

•The bedway、slideway and guideways are hardened and precision ground •Infinitely variable speed for the spindle obtained through inverter motor • Axis X with large stroke• wide bedways • high rigidity and accuracy, run smoothly with low noise • Design of electromechanical integration, easy operation and maintenance• Clamping methods of manual chuck, power chuck and spring collect are interchangeable.

Standard Configuration

Air collet, Air Tail Stock, lighting system, automatic lubricating system, cooling system, GSK980Tb2 CNC system, 4 station electric tool post.

Special Configuration

• gang type tool holder、6 station electric tool post, sleeve spring collet, pneumatic chuck, other brand CNC system.

Specifications

Model CNC6130D
Item No 118041
Max. swing dia. over bed ф340
Max. swing diameter over table 170mm
Spindle speed (infinitely) 100-4000r/min
Spindle bore 42mm
Spindle taper MT5
Distance between centers 435mm
Max. longitudinal stoke 435mm
Max. cross stoke 260mm
Tailstock stroke 70mm
Tailstock taper MT3
Turning tool size 20 x20mm
Rapid feed X:6  Z:8 m/min
Circle 0.005mm/100mm
Cylinder 0.016mm/100 mm
Power of motor 3KW
Min. setting unit 0.001mm
Repositioning accuracy X: 0.012  Z:0.016 mm
N.W./G.W. 1100/1200Kg
Overall dimensions(L´H´W) 1600x1470x1950mm
Standard system Siemens 808D
