Precision Metal Turning CNC Lathe Machine Horizontal CNC Lathe CNC6136C Series
Main Feature And Function
The guideways are hardened and precision ground
·Infinitely variable speed change for spindle obtained by inverter
·Monoblock cast iron stand·The machine is high in rigidity and accuracy,runs smoothly with low noise
·Axes X.with large stroke
·Design of electromechanical integration, easy operation and maintenance
·Two national patents.
CNC6136C is high efficient CNC lathe.It can turn cylindrical surface,taper surface,arc surface,internal hole,slots and threads,and is suitable for single or mass production of parts.
Standard Configuration
3-jaw chuck,lighting system,automatic lubricating system,cooling system, GSK980TDi CNC system,gang-type tool holder.
Special Configuration

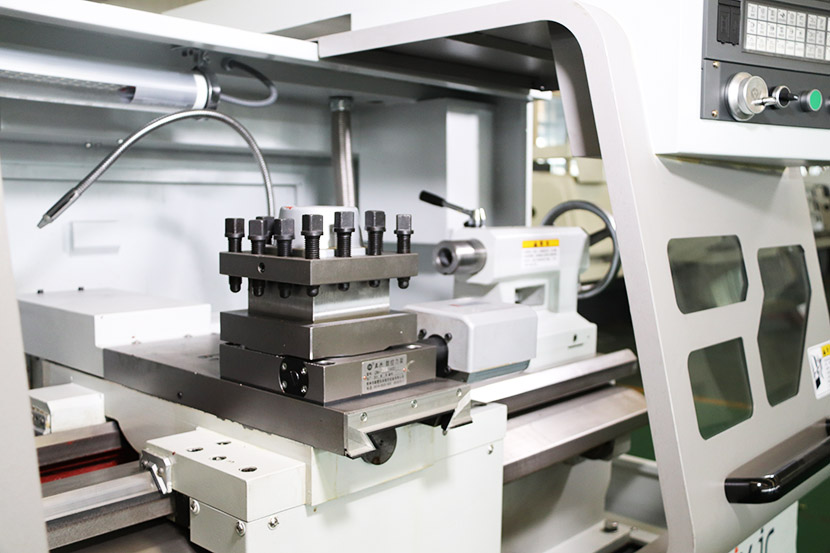

steady rest, follow rest,live center,electric toolpost,pneumatic or hydraulic chuck,CNC system of other brands.
Specifications
| SPECIFICATIONS | CNC6136C*535mm | CNC6136C*835mm |
| Model | 118040 | 118042 |
| Swing diameter over bed | ф400mm | ф400mm |
| Swing diameter over table | ф200mm | ф200mm |
| Spindle speed(infinitely) | 50~2000(2500)r/min | 50~2000(2500)r/min |
| Spindle bore | 54mm | 54mm |
| Spindle taper | MT6 | MT6 |
| Distance between centers | 535mm | 835mm |
| Max.longitudinal stoke | 515mm | 815mm |
| Max.cross stoke | 300mm | 300mm |
| Tailstock stroke | 140mm | 110mm |
| Tailstock taper | MT4 | MT4 |
| Turning tool size | 20×20mm | 20×20mm |
| Rapid feed | X:6 Z: 8m/min | X:6 Z: 8m/min |
| Circle | 0.005mm/100mm | 0.005mm/100mm |
| cylinder | 0.01mm/100mm | 0.01mm/100mm |
| Power of motor | 4kW | 4kW |
| Min.setting unit | 0.001mm | 0.001mm |
| Repositioning accuracy | X:0.005 Z:0.006mm | X:0.005 Z:0.006mm |
| CNC system | GSK980TDi | Siemens 808D |
| N.W/G.W | 1330/1430kg | 1500kg |
| Overall dimensions | 1820×1400×1730mm | 2300×1630×2000mm |
| Package | Veneer box | Veneer box |
