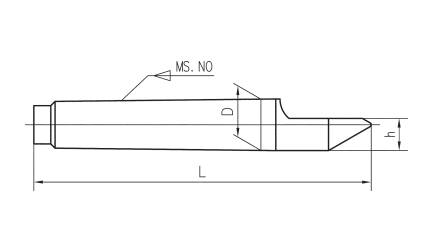

HALF-NOTCHED LATHE CENTERS
|
Morse Taper |
D(mm) |
h(mm) |
L(mm) |
Accuracy(mm) |
Item No. |
|
MT1 |
12.065 |
7.6 |
80 |
0.01 |
562-181 |
|
MT2 |
17.780 |
11 |
100 |
0.01 |
562-182 |
|
MT3 |
23.825 |
15.05 |
125 |
0.01 |
562-183 |
|
MT4 |
31.267 |
20.8 |
160 |
0.01 |
562-184 |
|
MT5 |
44.399 |
29.35 |
200 |
0.01 |
562-185 |
|
MT6 |
63.348 |
41.9 |
270 |
0.01 |
562-186 |
|
MT7 |
83.061 |
53.78 |
360 |
0.01 |
562-187 |
