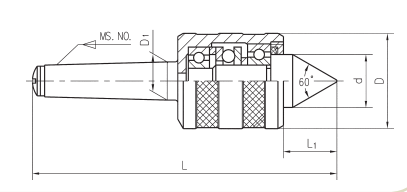

PRECISION MEDIUM DUTY LIVE CENTERS
|
Morse Taper |
L(mm) |
D(mm) |
L1(mm) |
d(mm) |
D1(mm) |
Max Radial Load(N) |
Max Speed(rpm) |
Accuracy(mm) |
Item No. |
|
MT1 |
115 |
34 |
20 |
18 |
12.065 |
900 |
5000 |
0.01 |
562-141 |
|
MT2 |
145 |
12 |
28.6 |
25 |
17.780 |
1500 |
5000 |
0.01 |
562-142 |
|
MT3 |
170 |
52 |
30 |
28 |
23.825 |
2000 |
4200 |
0.01 |
562-143 |
|
MT4 |
205.7 |
60 |
34.7 |
32 |
31.267 |
3200 |
3200 |
0.01 |
562-144 |
|
MT5 |
254 |
77 |
45 |
45 |
44.399 |
6300 |
2400 |
0.015 |
562-145 |
|
MT6 |
362 |
125 |
68.5 |
75 |
63.348 |
10000 |
1600 |
0.015 |
562-146 |
