QUICK CHANGE TOOL HOLDERS,TURNING AND FACING HOLDERS No.4-41
Use straight shank drilling and reaming, boring etc.Equipped with a split bushing to accommadate a boring bar of small diameter.It grips with extreme rigidity.Cuts smoothly without chatter.
|

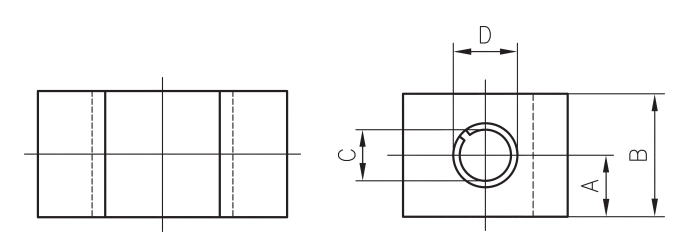

Item NO. |
A(in) |
B(in) |
C(in) |
D(in) |
Swing dia(in) |
|
|
550-104 |
250-104 |
3/4 |
1-1/2 |
5/8 |
3/4 |
3/4 |
|
550-204 |
250-204 |
7/8 |
1-3/4 |
3/4 |
1 |
1 |
|
550-304 |
250-304 |
1 |
2 |
3/4 |
1 |
1 |
|
550-404 |
250-404 |
1-1/4 |
2-1/2 |
1 |
1-1/4 |
1-1/4 |
|
550-141 |
250-141 |
7/8 |
1-3/4 |
3/4 |
1 |
1 |
|
550-241 |
250-241 |
1 |
2 |
1 |
1-1/4 |
1-1/4 |
|
550-341 |
250-341 |
1-1/8 |
2-1/4 |
1 |
1-1/4 |
1-1/4 |
|
550-441 |
250-441 |
1-3/8 |
2-3/4 |
3/4 |
1-1/2 |
1-1/2 |
