VERT.HOR. ROTARY TABLES
The TSL series horizontal and vertical rotary tables are for indexing,circular cutting.angle setting,boring,spot facing operations and similar work in conjunction with a milling machine.This type rotary table is so designed as to permit machining operarions at a higher dimension than that of TS type rotary table.The base can be used in a vertical position to enable to carry out center work with the help of tailstock.
A flange for connecting scroll chuck is special supplied,and be packed independent.For special order,the dividing plates accessory allows the operator to accurately divide the 360º rotation of the clamping of the clamping surface into divisions of 2 through 66,and all divisible of 2,3 and 5 from 67-132.
MAIN SPECIFICATIONS
|
TSL160 |
TSL200 |
TSL250 |
TSL300 |
TSL400 |
|
|
Diameter of table mm |
φ160 |
φ200 |
φ250 |
φ320 |
φ400 |
|
Morse taper of the center hole |
2# |
3# |
3# |
4# |
3# |
|
Diameter of the center hole mm |
φ25×6 |
φ30×6 |
φ30×6 |
φ40×10 |
φ40×10 |
|
Height of center for Verti.mounting mm |
125 |
150 |
170 |
210 |
260 |
|
Width of T-slot mm |
10 |
12 |
12 |
14 |
14 |
|
Adjacent angle of T-slot |
90º |
90º |
60º |
60º |
60º |
|
Width of the locating key mm |
12 |
14 |
14 |
18 |
18 |
|
Modules of worm and worm gear |
1.5 |
1.75 |
2 |
2.5 |
3.5 |
|
Transmission ratio of the worm gear |
1:90 |
1:90 |
1:90 |
1:90 |
1:90 |
|
Graduation of the table |
360º |
||||
|
Readout of the handwheel |
1′ |
||||
|
Minimum value of vernier |
10″ |
||||
|
Indexing accuracy |
80″ |
60″ |
60″ |
60″ |
60″ |
|
Max.bearing(with table Hor.)kg |
100 |
150 |
200 |
250 |
300 |
|
Max.bearing(with table Vert.)kg |
50 |
75 |
100 |
125 |
150 |
|
Net weight kg |
23 |
31.5 |
46 |
77 |
150 |
|
Gross weight kg |
30 |
42 |
57 |
92 |
175 |
|
Case dimensions mm |
432x432x220 |
450x440x235 |
510x460x240 |
590x580x250 |
750x684x286 |
|
Maching chuck |
K11125 |
K11160 |
K11200 |
K11250 |
K11325 |
|
Item No. |
531024 |
531026 |
531028 |
531030 |
531032 |

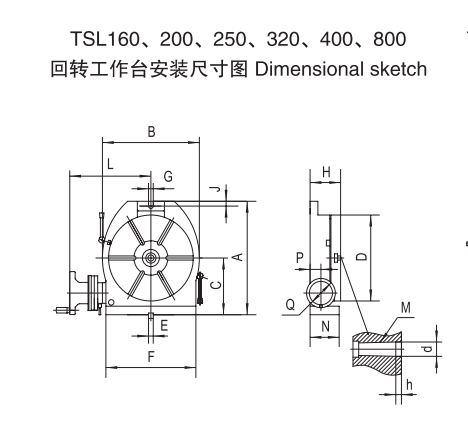

TSL Installation sketch and dimensions:
|
|
TSL160 |
TSL200 |
TSL250 |
TSL300 |
TSL400 |
|
A |
242 |
285 |
328 |
410 |
525 |
|
B |
196 |
236 |
286 |
360 |
450 |
|
C |
125 |
150 |
170 |
210 |
260 |
|
D |
φ160 |
φ200 |
φ250 |
φ320 |
φ400 |
|
E |
12 |
14 |
14 |
18 |
18 |
|
F |
186 |
208 |
253 |
320 |
400 |
|
G |
12 |
14 |
14 |
18 |
18 |
|
H |
85 |
100 |
110 |
120 |
150 |
|
J |
12 |
15 |
16 |
16 |
16 |
|
L |
194 |
211 |
241 |
273 |
337 |
|
M |
|
MT3 |
|
MT4 |
|
|
N |
82 |
99 |
106 |
118 |
145 |
|
P |
37 |
48 |
48 |
48 |
145 |
|
Q |
125 |
125 |
125 |
125 |
50 |
|
d |
φ25 |
φ30 |
φ30 |
φ40 |
φ40 |
|
h |
6 |
6 |
6 |
10 |
10 |
