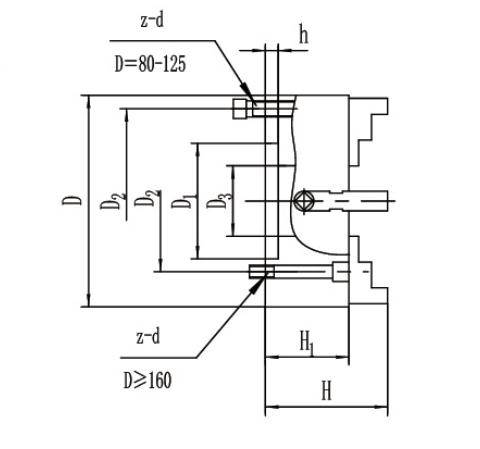

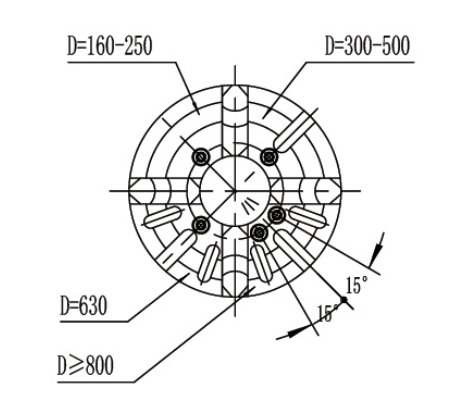

4-JAW INDEPENDENT FLAT BACK CHUCKS
|
Item NO. |
Model |
D1 |
D2 |
D3 |
H |
H1 |
h |
z-d |
|
571101 |
K72 80 |
55 |
66 |
22 |
56 |
42 |
3.5 |
4-M6 |
|
571103 |
K72 160 |
65 |
95 |
45 |
93 |
65 |
5 |
4-M10 |
|
571105 |
K72 200 |
80 |
112 |
56 |
107 |
75 |
6 |
4-M10 |
|
571107 |
K72 250 |
110 |
130 |
75 |
120 |
80 |
6 |
4-M12 |
|
571109 |
K72 300 |
152 |
130 |
75 |
134 |
90 |
6 |
4-M12 |
|
571111 |
K72 400 |
160 |
185 |
125 |
143 |
95 |
8 |
4-M16 |
|
571113 |
K72 500 |
200 |
236 |
160 |
161 |
106 |
8 |
4-M20 |
