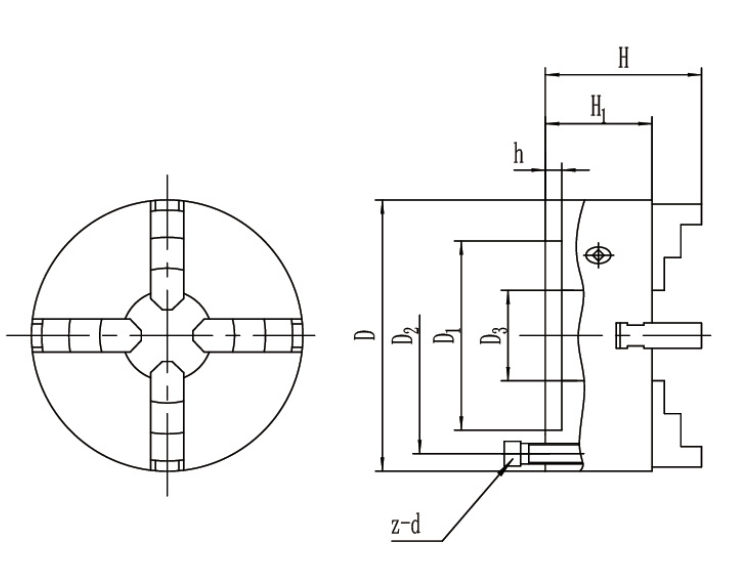

4-JAW PLAIN BACK SELF-CENTERING CHUCK
Short cylindrical center mounting.
The structure parameters of these chucks are the same as those of the k11 series.
Suitable for processing square components and eight-edged components.
|
Item NO. |
Model |
D1 |
D2 |
D3 |
H |
H1 |
h |
z-d |
|
571211 |
K12 125 |
95 |
108 |
30 |
84 |
58 |
4 |
3-M8 |
|
571213 |
K12 160 |
130 |
142 |
40 |
95 |
65 |
5 |
3-M8 |
|
571215 |
K12 200 |
165 |
180 |
65 |
109 |
75 |
5 |
3-M10 |
|
571217 |
K12 250 |
206 |
226 |
80 |
120 |
80 |
5 |
3-M12 |
|
571219 |
K12 315 |
260 |
285 |
100 |
147.5 |
90 |
6 |
3-M16 |
|
571225 |
K12 380 |
325 |
350 |
135 |
155.5 |
98 |
6 |
3-M16 |
|
571231 |
K12 500A |
440 |
465 |
210 |
202 |
115 |
6 |
6-M16 |
